What is Grouting Material?
- 02/14/2025
- yuruwaterproof.com
With the continuous development of construction technology and the widespread use of concrete structures, the research and development and application of grouting materials are also constantly innovating and improving.
Grouting materials are of certain importance in waterproofing projects. Whether you are applying it to buildings, bridges, tunnels, subways, water conservancy projects and other fields, choosing the right grouting material is crucial.
Yuru Waterproof will take you to explore the types of grouting materials and their specific applications in waterproofing in this article.
What is Grouting Material?
Grouting material refers to a fluid material that is injected into the cracks and holes of the strata, rocks or structures under pressure to increase the bearing capacity, prevent leakage and improve the overall performance of the structure.
Common types of chemical grouting materials include:
- Polyurethane grouting: A flexible material that is often used for waterproofing due to its ability to expand and seal cracks.
- Acrylic-based grouting: Known for its fast curing and durability, it is usually used for smaller cracks.
- Epoxy resin grouting: Very effective in industrial applications, with strong adhesion and water resistance.
These materials are selected based on the specific needs of the construction project, such as the type of structure, environmental conditions and crack size.
Application of Grouting Materials in Waterproofing Projects

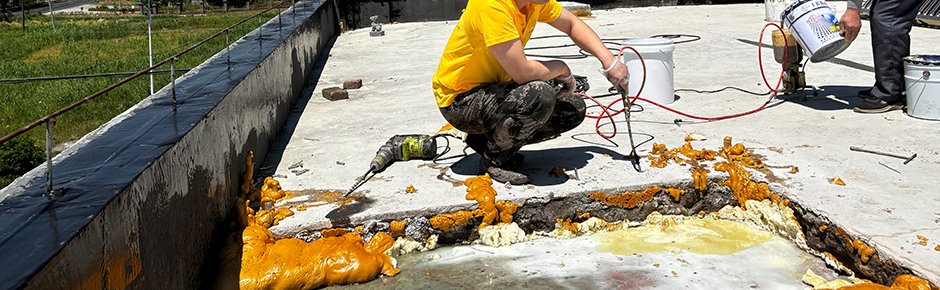

Grouting materials are widely used to fill, reinforce or seal voids or cracks in concrete structures to improve the bearing capacity and durability of the structure.
Including bridges, tunnels, subways, water conservancy projects, building structures and other fields, extending the service life and ensuring the safe application of the project.
Here are some key applications of grouting materials in waterproofing:
Basements:
Grouting is often used to seal cracks in basement walls and floors, ensuring that water does not seep in and create long-term damage or mold growth.
Tunnels:

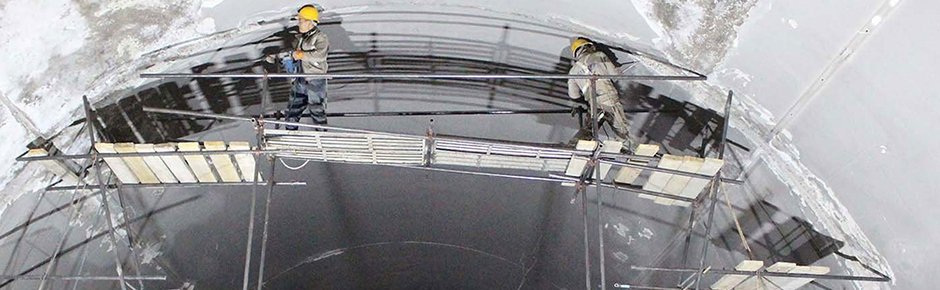

Waterproofing in tunnels is critical, especially in areas prone to water ingress. Grouting materials are injected into cracks to maintain tunnel integrity and prevent flooding.
Bridges:
In bridges, grouting helps maintain the waterproofing layer, particularly in areas subject to wear and tear due to weather exposure.
Foundations:
Grouting materials are applied in foundation repair projects to fill voids and cracks, ensuring the foundation is sealed and preventing water damage.
The selection of the right grouting material depends on factors such as the environment, the type of structure, and the severity of the cracks or gaps that need to be sealed.
Choosing the correct material ensures the longevity and durability of the structure while protecting it from water damage.
Common Issues Encountered When Using Grouting Materials
While grouting materials are essential for waterproofing and structural integrity, certain challenges may arise during their application.
Here are some of the most common issues encountered:
Issue 1: Uneven Curing of Grouting Material
Uneven curing can significantly affect the waterproofing efficiency, as it may result in weak spots or gaps in the seal.
This issue typically arises from inconsistent injection pressure or unstable material quality. If the curing process is not uniform, water may still seep through, leading to damage over time.
Issue 2: Backflow or Water Seepage After Grouting
Backflow, or reverse water seepage, is a common problem when the grouting material fails to completely fill the cracks or voids.
This can occur if the material is not injected properly, or if the structure’s cracks are too large or irregular for the material to properly seal. Insufficient pressure or improper preparation of the surface before grouting can also contribute to this issue.
Issue 3: Difficulties in Grouting Application
In complex construction environments, grouting can be difficult to apply effectively. Limited space, hard-to-reach areas, or difficulty controlling injection pressure are common challenges that may arise during the application process.
These factors can complicate the procedure, requiring skilled professionals and precise equipment to ensure the material is properly injected and the structure remains secure.
Effective Solutions for Common Grouting Issues
To overcome the common issues encountered during grouting applications, several effective solutions can help ensure the process goes smoothly and the waterproofing remains effective.
Here are key methods for solving the most frequent problems:
Solution 1: Choose High-Quality Grouting Materials
Selecting high-quality grouting materials is essential to ensure proper flowability, adhesion, and durability.
Materials with superior properties, such as better flexibility and resistance to water, will form a stronger, longer-lasting seal. Always assess the material’s suitability for the specific project requirements, such as the type of structure and environmental conditions, to avoid future issues.
Solution 2: Control Injection Pressure and Speed
Precise control over the injection pressure and speed is crucial for achieving even distribution of the grouting material.
By maintaining a consistent pressure, the material can properly fill cracks and gaps without causing uneven curing or weak points. Speed control ensures that the material is injected at a rate that allows it to fully penetrate the cracks and form a solid seal.
Solution 3: Proper Pre-Treatment of Cracks
Before applying grouting materials, thoroughly clean and treat the cracks or gaps to ensure the grouting material bonds effectively with the surface.
This pre-treatment process involves removing debris, dust, or moisture, which could interfere with the grouting process. Proper surface preparation will help the material make direct contact with the crack surface, leading to a better fill and more reliable waterproofing results.
Advantages and Recommendations of YURU Waterproof Grouting Materials
YURU waterproof grouting materials have been tested and proven in various waterproof engineering projects, including projects with complex environments and large-scale applications, such as Suzhou Metro Project, Pipe Gallery Project, South-to-North Water Diversion Project, etc., and are well-known for their high permeability, fast curing time and excellent waterproofing performance.
Key Benefits of YURU Waterproof Grouting Materials:
- High Permeability: YURU grouting materials are designed to penetrate deeply into cracks and voids, ensuring a tight seal and effective water resistance.
- Rapid Curing: Our products cure quickly, reducing downtime and speeding up project completion. This is particularly advantageous in time-sensitive construction projects.
- Superior Waterproofing: YURU grouting materials provide long-lasting waterproofing solutions, ensuring that structures remain protected from water damage for years to come.
- Ideal for Complex and Large-Scale Projects: Whether it’s a basement, tunnel, or foundation, YURU grouting materials are effective in both small and large applications, providing reliable results even in challenging conditions.
Conclusion: The important role of grouting materials in waterproofing
In summary, grouting materials, as an important concrete structure reinforcement material, have important application value in engineering construction.
Choosing the right and high-quality grouting materials can prevent water penetration and enhance the overall strength of the structure, ensuring the durability and integrity of the waterproofing project.
When you choosing chemical grouting materials, it is necessary to comprehensively consider factors such as their characteristics, application scenarios, and costs to select the most suitable grouting materials.
